THERMOCOAX Space Products : New Generation of Catalyst Bed Heater

Spacecraft Propulsion

Coiled cable design for :

Green propulsion : Thrusters 1 to 200N

Deorbiting operation : Thruster 400N


Thermocoax Pedigree

THERMOCOAX has been a key player worldwide for 15 years in the designing, developing and manufacturing of heating systems for the space market.

We provide solutions for:

– Ground applications:

  • R&D programs with institutes
  • Ground equipment

– Flying models :

  • Heating management system on Satcom.
  • Catalyst bed heater for chemical propulsion
  • Heating solution for Hall Effect thruster

-Scientific Mission :

  • Heating system on Curiosity Rover
  • Heating Element on ISS for MSL
  • Heating Element for pyrolysor on Cassini-Huygens Titan probe



Technical Application of Coiled Catalyst Bed Heater

The new generation of Green propulsion thrusters and deorbiting thrusters is a great opportunity to supply the market with a new generation of catalyst bed heater for better efficiency, increased reliability and greater cost-effectiveness.

Until now, the cartridge design heater has been mostly used and 2 to 4 systems are implemented on the thruster to reach 12 watts.

pic 1

THERMOCOAX is able to simplify the catalyst bed heater system by offering its technology solution of a heating cable which has a diameter of only 1 mm. This cable is then coiled around the catalyst and fixed by brazing or another fixation mode.

13-06-2016 12-02-25       14-06-2016 11-58-43

This new design is based on long-proven cable technology that has been adopted by aircraftavionics and space missions, such as for the Prisma spacecraft. Currently, this new design is qualified to equip the 40-satellite constellations dedicated to taking 3D pictures of the Earth.

Technical Description of the Catalyst Bed Heater

We use our best mineral insulated cable.

Mineral Insulated Cable with 4 resistive wires to shape 2 heating loops

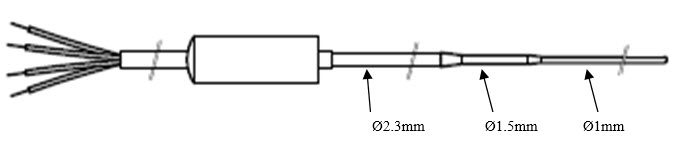

Cold part in two stages, the first stage with a diameter of 2.3mm, the second stage with 1.5mm and a heating part with a 1mm diameter

13-06-2016 16-31-29

The cable is then coiled around a ring to be fixed onto the catalyst.

13-06-2016 16-35-30

Example 1 :

pic 2

Example 2 :



Catalyst Bed Heater :

  • 2 redundant electrical loops
  • Nominal Power supply: 28 volt to 55 volt
  • Power version per loop :
    • 10 watt under 28Vdc
    • 100 watt under 55 volts
  • Max exposed temperature :
    • 1000 °C with Inconel
    • 1600°C with Platinum


Other power available by playing on the cable geometry :

14-06-2016 14-17-13

Mineral Insulated Cable :

Version exposed 1000°C :

  • Inconel 600 sheath
  • 4 Nickel-Chromium wires

Version exposed 1600°C

  • Platinum sheath
  • Platinum-rhodium wires



Lead Wires :

  • 4 wires
  • Color code for each loop
  • AWG24 or 26
  • Strength 1.4 kg


Acceptance Test Criteria of the catalyst bed heater :

  • Helium Leak Test
  • X-Ray of the heating cartridge
  • X-Ray of the MIC/lead wires junction
  • Lead attachment strength test
  • Visual and mechanical examination
  • Overvoltage
  • Line Resistance
  • Insulation Resistance under 500volts
  • Burn-in test
  • Dielectric 100/300/500Vac, 60Hz/60s
  • Weight
  • Final Manufacturing Report


Test List for Qualification Program of the Catalyst Bed Heater

  • Thermocoax conducts and realises the qualification test program in accordance with our customer’s specifications.

Our engineers write the QTP for customer approval prior to test execution.

Most of the tests (thermal, humidity, electrical…) on the Catalyst Bed Heater are performed in THERMOCOAX’s testing lab facilities.

Those requiring heavy equipment (vibration, acceleration, shocks…) are subcontracted to external laboratories or supported by our customers with the complete propulsion system.

-Typical Qualification Test list on Catalyst Bed Heater :

  • Vibration
  • Acceleration
  • Mechanical shock
  • Pyrotechnic Shock
  • Helium leak test
  • Burn-in test
  • Humidity test
  • Hot Firing test
  • Electrical Cycling test
  • Thermal cycling test
  • Lead Attachment Test
  • Dielectric Test
  • Destructive Physical Analysis
  • X-Ray Examination



  • Packaging and Cleanliness :

The Catalyst Bed Heater is shipped in a specific packaging to ensure excellent conditions during transportation and storage :



Thermocoax supplies new green propulsion programs (1, 5, 20, 200 and 400 Newton thrusters). Here are few examples :

  • Prisma
  • Google Constellation

Hermocoax is the market leader in Catalyst Bed Heater production and is proud to participate in challenging international space programs.

THERMOCOAX focuses on high quality Catalyst Bed Heater products for the best stability and repeatability during operation. For 15 years, we have witnessed the challenges faced by our customers to manufacture spacecraft and to improve the quality of life of humanity.


New large constellation programs are taking shape, THERMOCOAX is now ready to support the market with cost-effective catalyst bed heaters.
